功能与概述

概述

GRL-PCIE6-BASE-RXA 提供全自动测试,按照 64 GT/s 的最新标准测试您的 PCIe 6.0 Base (ASIC) 接收器。一键即可快速完整运行 PCIe 6.0 规范接收端信号jitter tolerance测试

主要功能

  • 全自动、快速校准和测试
    • 一键即可使用 Seasim 统计眼图模拟器校准 PCIe 6.0 64 GT/s Base spec 接收端压力眼图。
    • 运用快速、可重复及业界标准的设置执行接收端认证测试、Jitter Tolerance和Margin测试
  • 多设备兼容

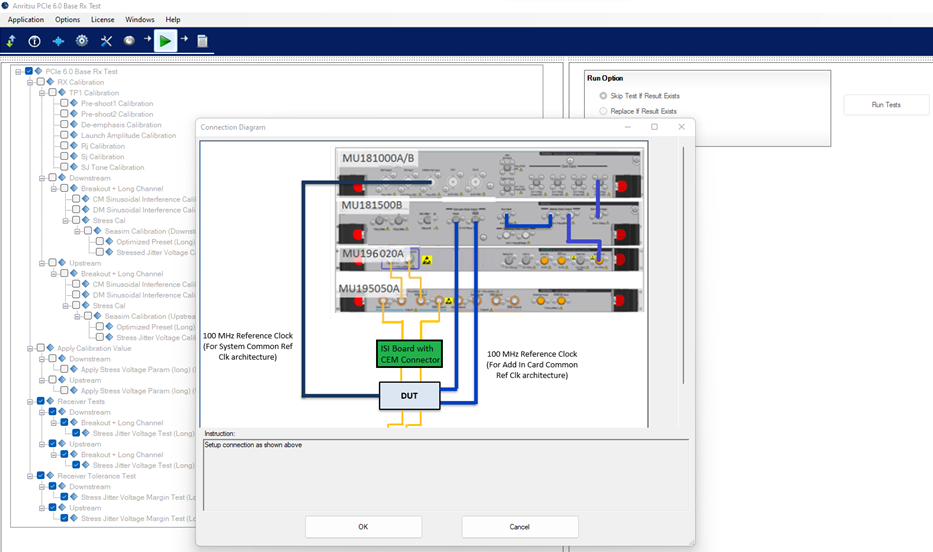

    • 兼容 Tektronix 和 Keysight 示波器,搭配 Anritsu MP1900A BERT 校准压力眼图。
    • 兼容固定或可变的 ISI solutions
  • 高灵活度
    • 可与多个示波器实时协作
  • 全方位配置
    • 可使用标准测试规范或使用者自定义的配置,以适应不同的测试环境。
  • 经济实惠
    • 具有调试功能的高性价比测试解决方案,可帮助用户获得可靠且可重复的结果。
  • 易用性
    • 可在示波器直接运行或在 Win 7 以上 PC端远程运行
    • 自动设置示波器并捕获所需的波形。
    • 轻松生成报告
  • 简易设计与测试
    • 设置简单、轻松执行测试并生成PDF或CSV报告

软件与配件

GRL-PCIE6-BASE-RXA – PCIe 6.0 Base规范接收端测试软件
GRL-PCIE6F-BASE-RXA -PCIe 6.0 Base规范接收端测试 – 支持 Gen 3 至 Gen 6 数据速率:64、32、16 和 8 GT/s
GRL-PCIE6-XXX-FLT -通过 USB Dongle 添加浮动许可证



下载与授权

PCIe 6.0规范接收端测试软件 (GRL-PCIE6-BASE-RXA)。

下载链接

其他产品

PCI Express®3.0 Base 接收端自动化测试软件(GRL-PCIE3-BASE-RX)

快速依据PCIe 3.0 Base规范测试您的PCIe产品接收端设计

Download Datasheet
