概述与功能

简介

GRL’s PCI Express PLL自动化测试软件(GRL-PCIE-PLL)提供全自动化的PCIe 5.0与早期阶段Lock Loop Bandwidth与Peaking的PCIe CEM(Card Electro Mechanical)强制测试项目。此解决方案与Tektronix和Keysight示波器相容,可与Anritsu MP1900A信号品质分析仪配搭。

GRL完整的PCI Express自动化测试解决方案包含:

  • GRL-PCIEF-TX PCIe发送端自动化测试软件
  • GRL-PCIE5-RXA PCIe 5.0接收端自动化测试软件支持Anritsu MP1900A信号品质分析仪以及Tektronix或Keysight示波器
  • GRL-PCIE-P1发送端自动测试控制器

主要功能

  • 全自动化

一键即可测试PCIe 5.0和传统的Bandwidth与Peaking。使用GRL-P1控制器(分开销售)可自动化预设切换。

  • 成本效益佳及灵活度高

GRL-PCIE-PLL使用与PCIe CEM接收端测试相同的设备。无需另外的时钟恢复仪器。可直接在示波器或远端Win7或以上的PC运作。

  • 容易上手

GRL PCIE-PLL自动设置示波器并捕捉需要的波形,轻松生成报告。

  • 易于测试

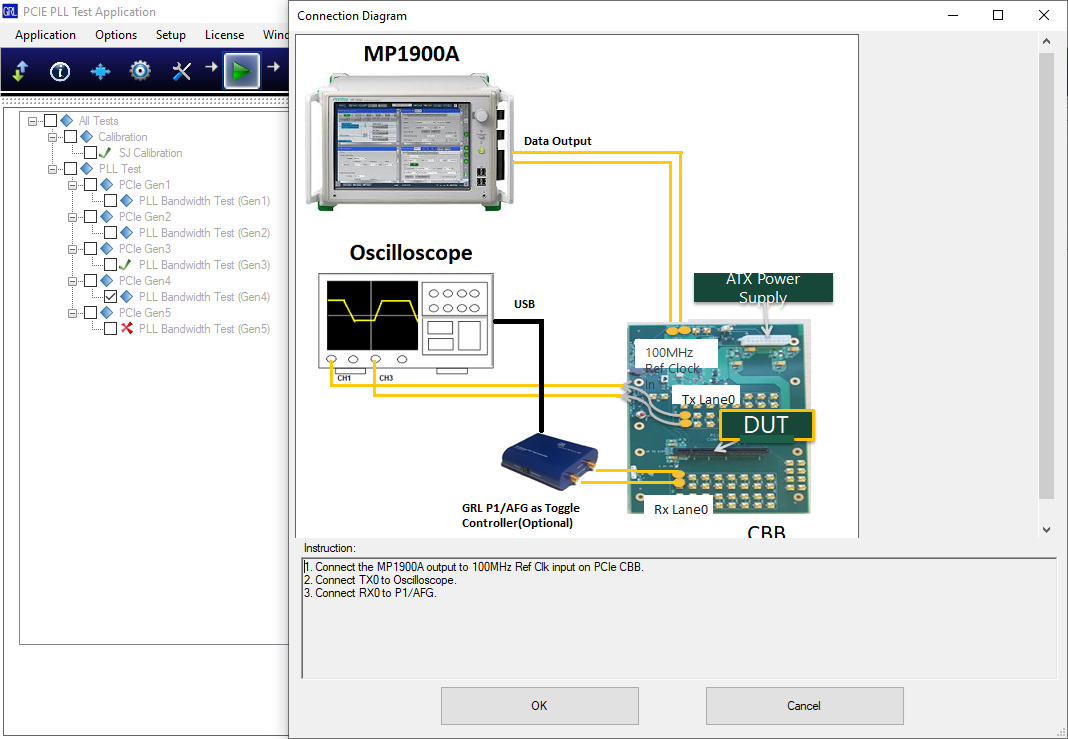

GRL-PCIE-PLL自动搭配作为Sinusodial Jitter source产生器的Anritsu MP1900A与Keysight或Tektronix来模拟时钟恢复功能,因此测量效果相当简单。

  • PCIe PLL自动化测试
  • 全面可配置
  • 自动生成报表



软件与配件

GRL-PCIE-PLL – PCIe PLL测试软件- 支持PCIe 5.0和所有早期传输速度(32、16、8、5与2.5 GT/s)

GRL-PCIE5F-TX – PCIe发送端测试软件- 支持PCIe 5.0和所有早期传输速度(32、16、8、5与2.5 GT/s)

GRL-PCIE5-TX – PCIe发送端测试软件- 仅支持PCIe 5.0 32 GT/s

GRL-PCIE34-TX – PCIe发送端测试软件- PCIe 4.0和早期传输速度(16、8、5与2.5 GT/s)

GRL-PCIE-P1 – PCIe发送端测试软件控制器- 此为硬件选配,与GRL-PCIE-TX软件搭配,可实现全自动化测试排程

如需正式报价和定价信息,请联系 info_china@graniteriverlabs.com

下载与授权

联系GRL以安排GRL PCI Express® PLL自动化校准与测试软件(GRL-PCIE-PLL)的产品展示

其他产品

PCI Express® 5.0 接收端自动化测试软件 (GRL-PCIE5-RXA)

快速依据PCIe® Base与CEM规范测试您的产品设计

PCI Express® 4.0 接收端自动化测试软件 (GRL-PCIE4-RXA)

快速依据Base与CEM规范测试您PCIe®产品的设计
