概述与功能

用最快速直接的方法测试您的DisplayPort 2.0发送端产品,高效进行品质验证与问题分析

简介

GRL DisplayPort 2.0发送端自动化测试软件(GRL-DP21-TX)可全自动化执行DisplayPort 2.0标准认证测试。此软件可搭配Tektronix或Keysight示波器以支持UHBR10 (10 Gbps)、UHBR13.5 (13.5 Gbps)及UHBR20 (20 Gbps)等传输速率的测试。

GRL完整的DisplayPort 2.0自动化测试解决方案包含:

  • GRL-DP21-TX DisplayPort 2.0发送端自动化测试软件
  • GRL-DP21-SINK-AN DisplayPort 2.0接收端自动化校准与测试软件, 适用于Anritsu MP1900A BERT和Tektronix或Keysight示波器

主要功能

  • 全自动化测试模式
    • 通过Tektronix或Keysight示波器,一键执行DisplayPort 2.0发送端认证测试与调试,包含Preset校准、TP3 EQ校准、SSC、Jitter、AC Common Mode与眼图测试。支持UHBR10 (10 Gbps)、 UHBR13.5 (13.5 Gbps)、UHBR20 (20 Gbps)的传输速率。
  • 可搭配多品牌仪器的高兼容性
    • 可任意搭配于Tektronix或Keysight示波器。
  • 高度弹性的整合功能
    • 能轻松整合信号交换器、电源供应器以及温度控制仪,快速进行多个信号通道的压力测试。
  • 支持定制化设置
    •  整合Wilder Technologies的高速信号测试治具和AUX控制器(选配)。
  • 多功能的高效解决方案
    • 具备调试功能,可协助使用者取得可靠且可重复的测试结果。
  • 简易使用

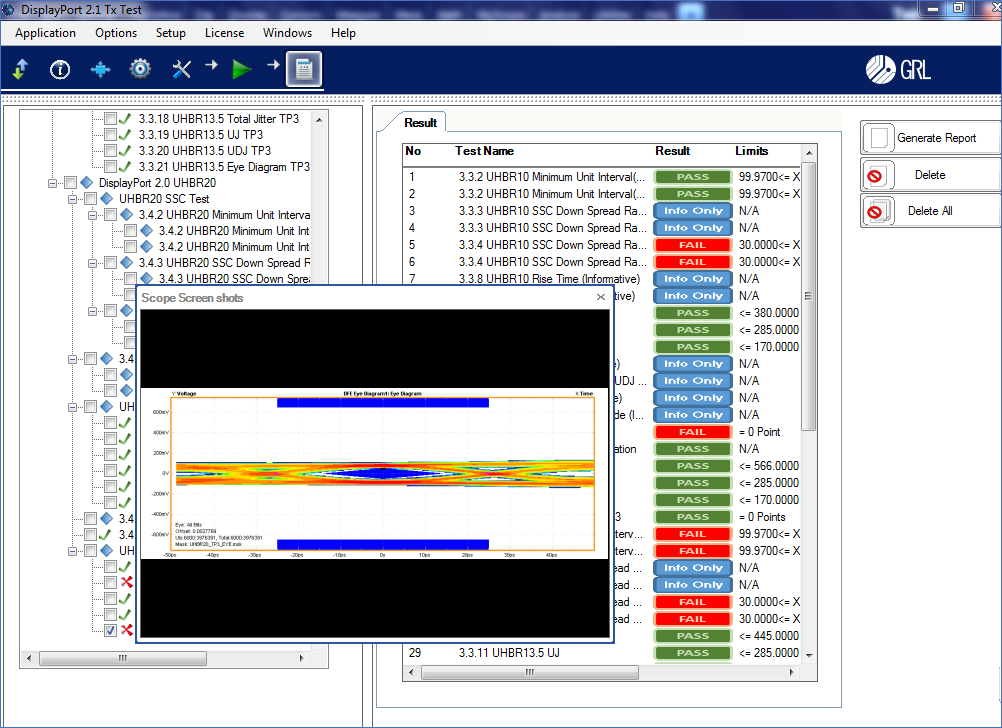

    • 可直接于示波器上执行,或在操作系统Win7以上的电脑进行远端操作,自动化设置示波器环境、捕捉所需波形并轻松生成测试报告。
  • 简易安装与测试
    • 通过简单的设置与安装步骤让GRL-DP21-TX快速取得一致且连贯的测试结果,并自动生成PDF与CSV格式的测试报告。



软件与配件

GRL-DP21-TX – GRL DisplayPort 2.0发送端自动化测试软件,支持UHBR10、UHBR13.5及UHBR20传输速率
GRL-DP21-SINK-AN – GRL DisplayPort 2.0接收端自动化测试软件,适用于Anritsu MP1900A BERT,和Keysight或Tektronix示波器,支持UHBR10、UHBR13.5及UHBR20传输速率
GRL-DP21-TXRX – 整合GRL DisplayPort 2.0接收端与发送端自动化测试软件的TX & RX解决方案

如需正式报价和定价信息,请联系 info_china@graniteriverlabs.com

试用与授权

联系GRL以安排GRL DisplayPort 2.0发送端自动化测试软件(GRL-DP21-TX)的产品展示

其他产品

DisplayPort 1.4 接收端自动化测试软件 Tektronix BERTScope™ (GRL-DP14-SINK)

一键执行DisplayPort PHY CTS (DP1.4/DP over USB Type-C®)的Sink Jitter Tolerance与Margin测试

DisplayPort 1.4 接收端自动化测试软件 (GRL-DP14-SINKAN)

快速验证您的DisplayPort™产品接收端设计与特性分析
