功能与概述

快速验证与分析PAM4接收端设计的电性特性。

概述

GRL的PAM4接收端自动化测试软件(GRL-PAM4-RXA)是一套易上手的自动化测试工具,提供高效的方法来测试PAM4主机接收端符合IEEE 200GAUI-4以及400GAUI-8 C2M验证规范的Jitter Tolerance。

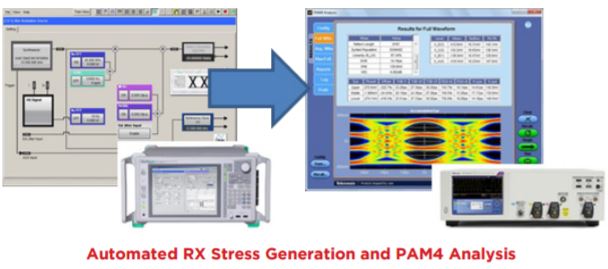

GRL-PAM4-RXA能自动化进行符合IEEE 802.3bs规范的PAM4受压眼图校正。可搭配AnritsuMP1800A dual-channel BERT结合Tektronix DPO70000SX 70 GHz 53.125Gbaud/s (26.5625Gbps)示波器进行测试。 GRL-PAM4-RXA整合所需的CTLEs及PLL,透过Tektronix PAM4 Analysis Application分析信号眼图,并可自动测量PAM4 眼图高度(@1E-06)、眼图宽度(@1E-06)、Vertical Eye Closure (VEC)及Waveform Linearity。

GRL-PAM4-RXA可在任何Windows 7以上的PC及示波器使用。



软件与配件

GRL-PAM4-RXA – PAM4接收端自动化测试软件,可搭配Tektronix DPO70000SX 70 GHz波器。



下载与授权

联络GRL或您的Tektronix业务人员了解更多资讯或是安排GRL-PAM4-RXA产品演示。
