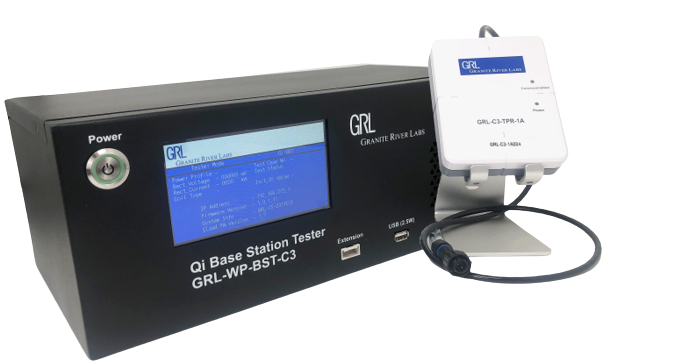

GRL WPC Qi Wireless Charging Base Station Tester (GRL-WP-BST-C3)

Overview & Features

Integrated WPC Qi Compliance Tester

Overview

  • Single solution for compliance testing of Qi Base Power (BPP) and Extended Power (EPP) profiles
  • Supports Qi specification version 1.2.4 and 1.3
  • Cost effective and easy to use
  • Manual and fully automated modes for Compliance and R&D needs
  • APIs for custom test case automation

Description

GRL-WP-BST-C3 (GRL-C3) is the world’s first cost effective and user-friendly Qi wireless charging compliance test solution. GRL-C3 automates all required Qi Base Station tests, enabling product developers to quickly run full compliance and validation test suites at the push of a button. GRL-C3 is ideal for Qi R&D and compliance testing.

GRL-C3 simplifies wireless charging compliance tests by offering two configurations to support Baseline Power Profile (BPP) up to 5W and Extended Power Profile (EPP) up to 15W. GRL-C3 also supports proprietary varieties of Qi wireless charging, providing flexibility for developers to quickly verify products following Qi standards.

GRL-C3 supports automated oscilloscope measurements with the Tektronix DPO7000 and PicoScope 6403D. Manual mode supports equivalent oscilloscope models.

GRL’s charging test solutions portfolio provides a full range of testing capabilities for wired and wireless technologies including Qi, USB Power Delivery, and Qualcomm QuickChargeTM.

Key Features

  • Single instrument for testing BPP and EPP power profiles of Qi wireless base stations
  • Supports all BPP tests to Qi specification v1.2.4
  • Supports Qi specification v1.3 for BPP and EPP
  • Fully automated for fast, accurate test execution
  • Automated oscilloscope measurements
  • API support for custom test case automation
  • Built in USB power supply for testing base stations that require 2.5W
  • User-friendly GUI
  • Offline analysis and debug with saved waveforms
  • Automatically generates comprehensive .pdf, .csv, and .xml test reports
  • Responsive worldwide technical support

Options & Accessories

GRL-WP-BST-C3-BPP – GRL Qi Wireless Charging Base Station Tester for BPP power profiles up to 5W (Qi v1.2.4)

GRL-WP-BST-C3-EPP – GRL Qi Wireless Charging Base Station Tester for EPP power profiles up to 15W (Qi v1.3)

GRL-WP-BST-C3 includes the following:

  • Accessories – all required power coils, thermocoupler, Foreign Object Detectors (FOD)
  • Automation software

For a formal quote and pricing contact info@graniteriverlabs.com Factory calibration is available.

Download & Purchase

Contact GRL to request a demo of GRL WPC Qi Wireless Charging Base Station Tester(GRL-WP-BST-C3).
