功能与概述

USB Type C to Type C线缆认证测试。

简介

GRL的USB Type C to Type C线缆标准测试自动化软件(GRL-USBC-VNAA)依照USB Type C标准测试MOI规范，是一套自动简单且高效的USB Type-C to Type-C线缆测试方案。 GRL-USBC-VNAA可在任何Windows 7或Windows 8×64作业系统的PC上自动执行USB Type C to Type C线缆测试。

主要功能

  • 使用MS46524B Series Performance Vector Network Analyzer自动执行USB Type-C to Type-C线缆测试
  • 最小化人为操作时间即可完成USB Type-C to Type C接收端测试
  • 设置简单、轻松执行测试与生成PDF报告
  • 若搭配GRL kayaQ 框架金钥即可自订压力测试计画

应用规格

  • Anritsu MS46524B Series Performance Vector Network Analyzer with the following option (MS46524B-020)
    • Anritsu TOSLKF50A-20 Coaxial Calibration Kit
  • Luxshare-ICT Calibration Kits (TFU-31C4R or TFU-23C4R)
    • 28K50A Precision Termination, DC to 40 GHz, K(m), 50 Ω 4 terminations required
  • Luxshare-ICT USB Type C High Speed Test fixtures (Gen I and Gen II) (TFU-23R2R)
  • Luxshare-ICT USB Type C Low Speed Test fixtures(TFU-24R3R)
  • Lushare-ICT USB Type C to Legacy Test fixtures
    • USB 2.0 Micro B Plug(TFU-25P4R)
    • USB 2.0 Mini B Receptacle(TFU-26R4R)
    • USB 3.1 Micro B Receptacle(TFU-14R4R)
    • USB 3.1 Type A Plug(TFU-12P4R)
    • USB 3.1 Type A Receptacle(TFU-12R4R)
    • USB 3.1 Type B Receptacle(TFU-19R4R)



软件与配件

GRL-USBC-VNAA -USB Type-C to Type-C 线缆标准测试自动化软件，适用于Anritsu VNA (GRL-USBC-VNAA)

*价格如有变动，恕不另行通知。



下载与授权

联系GRL或您的Tektronix业务人员以安排USB Type-C to Type-C 线缆标准测试自动化软件(GRL-USBC-VNAA)的产品演示与试用许可

其他产品

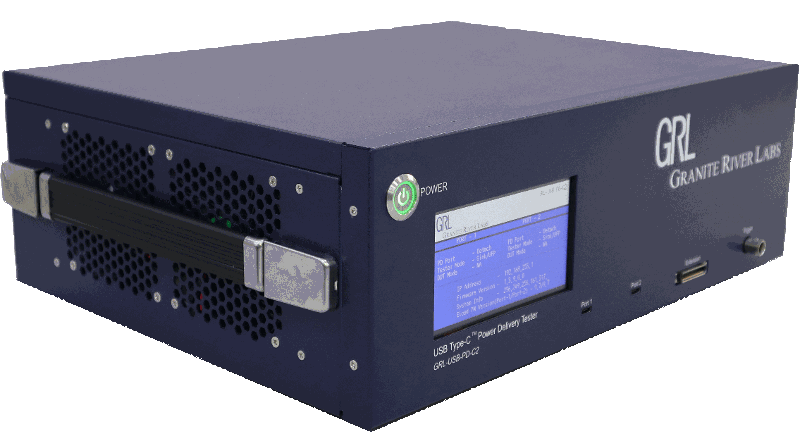

USB Power Delivery and Type-C® 测试分析仪 (GRL-USB-PD-C2)

兼容USB Type-C Power Delivery及Alt Mode认证测试的多功能仪器。

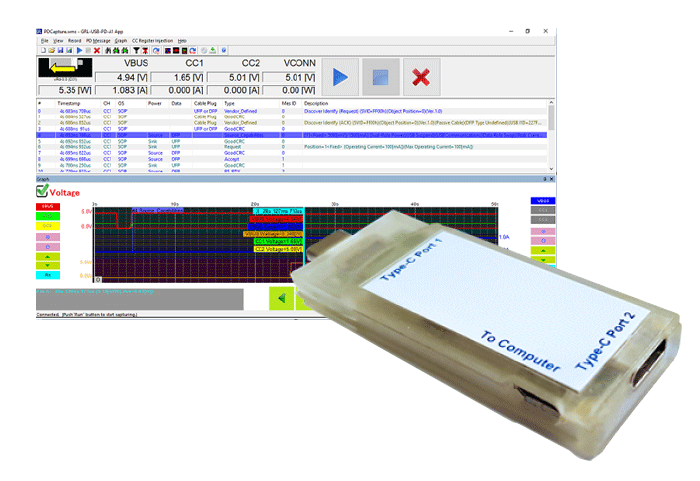

USB Type-C® Power Delivery 解码器 (GRL-USB-PD-A1)

GRL-A1可以通过USB Type-C和所有其他USB连接接口分析USB Power Delivery 3.0和所有其他充电技术的性能的解决方案，使用者界面简单，任何人都能快速上手。

USB 电源性能软件 (GRL-PSP)

供电或充电产品一条龙的性能测试，自动化测试且界面操作简单，能够帮工程研发人员节省测试时间的强大测试软件
